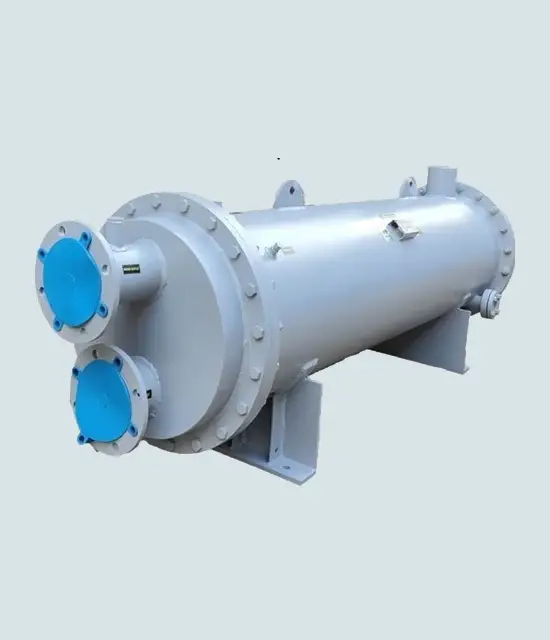

Shell & Tube Heat Exchangers
A shell and tube heat exchanger is one of the most reliable and universal thermal management solutions used in innumerable industries. As professional shell and tube heat exchanger manufacturers, we've witnessed directly how these systems provide reliable performance even in challenging operating conditions. Here's why these systems work so well:
- Fluid Flow: In the conventional shell and tube heat exchanger configuration, one fluid is pumped inside the inner tubes and a second fluid flows outside them within the outer casing.
- Heat Transfer: What's so appealing about this design is the manner in which thermal exchange is managed. Whether operating with counterflow (oppositely directed flows of fluids) or parallel flow, the tube heat exchanger makes it easy for heat transfer to occur from the hotter fluid to the cold fluid via the conductive walls of the tube.
- Cooling/Heating: As it operates, the warmer fluid slowly cools as it dissipates thermal energy, while the colder fluid heats up as it takes in this heat.
Types of
Shell & Tube Heat Exchangers
Fixed Tube Sheet
- The simplest of shell and tube heat exchanger designs employs tubes that are rigidly fixed to tube sheets, these being attached to the outer shell. This simple method provides excellent reliability but does complicate internal tube cleaning.
Removable Tube Bundle
- When maintenance access is a priority, this design from seasoned shell and tube heat exchanger manufacturer makes it possible for the entire tube assembly to be pulled out of the shell for complete cleaning and inspection. The tubes remain attached to their tube sheets but can be quickly taken out of the main housing when required.
U-Tube
- This innovative tube heat exchanger design has U-bent tubes whose both ends are attached to a common tube sheet. Since this design accommodates natural expansion and contraction of the tubes, this configuration is ideal for applications where there is a lot of thermal cycling.
Coil in Tank
- For some applications, this specialized design puts coiled tubing right inside a tank vessel. One fluid passes through these coils while the second fluid envelops them in the tank, providing effective heat transfer in a small space.
Double Pipe
- Bashfulness is sometimes the best policy. This basic shell and tube heat exchanger consists of two pipes nested within each other. One fluid flows inside the inner pipe and the other inside the gap between pipes, providing simple but efficient thermal transfer for particular applications.
Benefits of TAE Brand
Shell & Tube Heat Exchangers
High Efficiency
Shell and tube heat exchangers can achieve high heat transfer efficiency, especially in counterflow configurations.
Large Heat Transfer Area
The design allows for a large surface area in a compact space, making them suitable for high-capacity applications.
Versatility
They can handle a wide range of pressures and temperatures, making them suitable for various industrial processes.
Easy Maintenance
The tube bundle can often be removed for cleaning or maintenance, facilitating easier servicing.
Application of TAE Shell & Tube Heat Exchangers
Chemical Processing
Oil and Gas

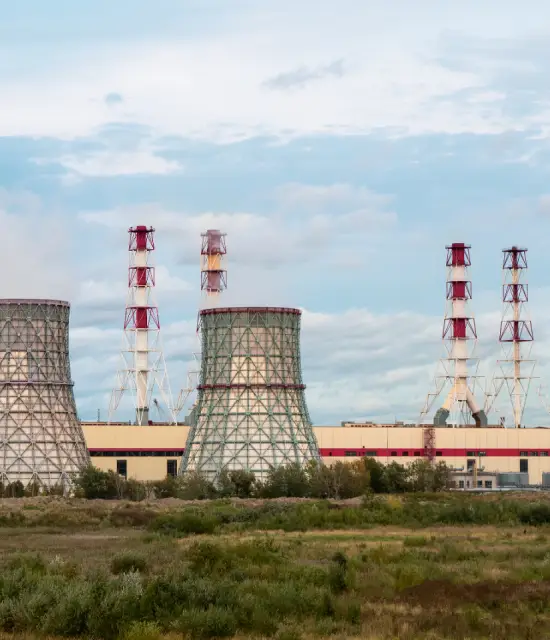

Power Generation

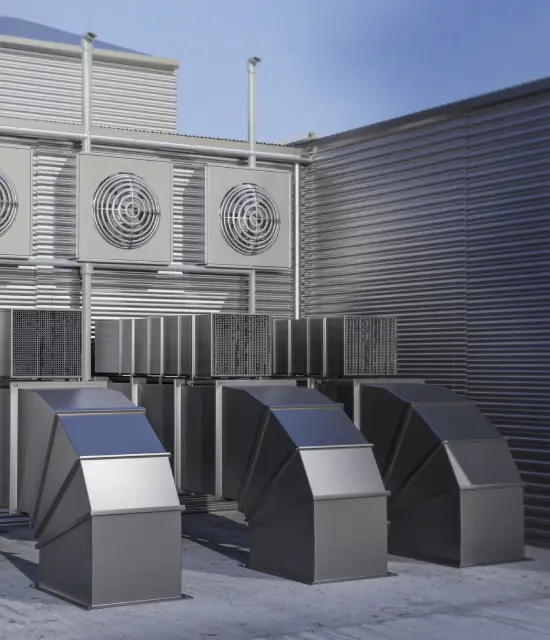

HVAC Systems
Food and Beverage
Shell and tube heat exchangers are widely used in various industrial applications for transferring heat between two fluids. If you have any more questions or need further details, feel free to ask!
Testimonials
Recently we bought a Radiators for our Generator. The Product Quality is Excellent .This Company produces custom made Radiators and Spares too. High Quality Products and Service Support.
krishna
CLEANTEK
We got support from ark engineering wonderful work done.He given idea for money save in genset. Ark engineering owner wonderful person.i will strongly recommend to ark engineering.
R.Prasannavenkatesh
Laser Experts India
Coimbatore
We have taken the services of the ark engineering for the service of our genset radiators.it was great Service at a better price .really professional and technical.
Suresh V
FAQ'S
What are the benefits of shell and tube heat exchangers in comparison with others?
They provide superior thermal performance, manage a wide range of fluid mixtures, and perform stably at very high and low pressure and temperature conditions. Our shell and tube heat exchanger manufacturers have created systems for everything from food processing to refineries, and have demonstrated remarkable flexibility across all industries.
Can shell and tube heat exchangers accommodate corrosive fluids?
Certainly. With the appropriate materials, these exchangers process even the most hostile media safely. Tube heat exchanger systems can be constructed by us using corrosion-proof options such as specialized stainless steel, titanium alloy, or Hastelloy—choosing the ideal material blend for your own chemical challenges and still keeping both performance and life.
